Size and Weight
Dimensions: 3.85 inches (98 mm) by 3.85 inches (98 mm) by 0.9 inch (23 mm)
Weight: 8.5 ounces (240 grams)1
Wireless
IEEE 802.11a/b/g/n
Simultaneous dual-band 2.4GHz and 5GHz
Radio output power: 20.5 dBm maximum (varies by country)
Channels 1-11, 36-116, and 132-165 approved for use in the United States and Canada
Channels 1-13, 36-64, and 100-140 approved for use in Europe and Japan
Channels 1-13, 36-64, and 149-165 approved for use in Australia, Hong Kong, and New Zealand
Compatibility
Interoperable with 802.11a, 802.11b, 802.11g, and 802.11n-enabled Mac computers, iOS devices, Apple TV, Windows-based PCs, and other Wi‑Fi devices
NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, SNMP, IPv6 (6to4 and manual tunnels)
Security
Wi‑Fi Protected Access™ (WPA/WPA2)2
WPA/WPA2 Enterprise2
Wireless security (WEP) configurable for 40-bit and 128-bit encryption
MAC address filtering
NAT firewall
802.1X, PEAP, LEAP, TTLS, TLS, FAST
Time-based access control
Software and Documentation
Printed documentation included
AirPort Utility for Mac available for free download
AirPort Utility for iOS available for free download
Bonjour for Windows available for free download

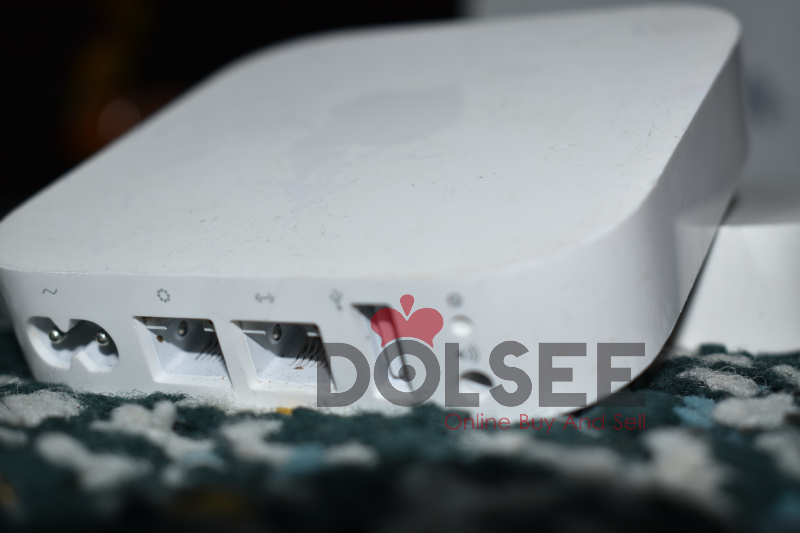

Interfaces
Simultaneous dual-band 802.11n wireless
10/100BASE-T Ethernet WAN port for connecting a DSL modem, cable modem, or Ethernet network
10/100BASE-T Ethernet LAN port for connecting a computer, Ethernet hub, or networked printer
USB 2 port for connecting a USB printer
3.5-mm audio minijack for analog or optical digital sound3
Number of Users
50
Electrical and Environmental Requirements
100-240V AC, 50-60Hz; input current: 0.2 amp
Operating temperature: 32° to 95° F (0° to 35° C)
Storage temperature: -13° to 140° F (-25° to 60° C)
Relative humidity (operating): 20% to 90%, noncondensing
Operating altitude: tested up to 10,000 feet (3000 m)
Maximum storage altitude: 15,000 feet
Agency Approval
FCC 15 Class B, Canada RSS-210, EN 300-328, EN 301-489, EN 301 893, ARIB STD-T66, RCR STD-T33, AS/NZS 4268: 2003, UL 60950, CSA-C22.2 No. 60950
